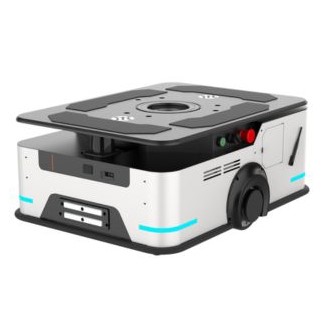

L300 is agile, perfect option for warehouses or manufacturing facilities with narrow passageway. Carrying a maximum payload of 300 kg, the AMR is equipped with a top module that elevates at a maximum height of 60mm and rotates in 360 degrees.
The YOUIFLEET dispatching system allows a fleet collaboration of up to 1,000 AMRs under same operation area, enabling a real 'light-out' operation.
Features
・ 300KG Payload
・ Flexible Deployment and Cluster Dispatching
・ Lift and Rotate Top Module
・ Intelligent Traffic Arrangement
・ 8 Hours Runtime
・ LiDAR, QR Code Carrier Docking Camera
| Category | Item | Parameter |
|---|---|---|
| Main Body | Size | 800*619*330 mm |
| Weight | 180KG | |
| Turning Diameter | 940mm | |
| Navigation Mode | Lidar SLAM | |
| Mobility Performance | Max. Payload | 300Kg |
| Max. Speed | 1.5 m/s No-loaded; 1.0 m/s Full-loaded | |
| Rated Speed | 1.2 m/s No-loaded; 0.8 m/s Full-loaded | |
| Positioning Accuracy (With QR code or reflector co-operating) | Positioning accuracy: ±5 mm; Angle accuracy: ±1° | |
| Path Planning | Visual tracking/autonomous planning | |
| Lift Method | 360° rotation & lifting; Max. Elevation: 60mm | |
| Power & Battery | Drive Model | Two-wheel differential drive |
| Battery Type | Lithium iron phosphate, 48V, 30Ah | |
| Battery Life | Cycle life ≥ 2,000 cycles; DoD ≥ 80% | |
| Safety Design | Running Time | ≥8H |
| Collision Detection | Located 360° around the robot with back laser sensor | |
| Emergency Stop Button | 2 x buttons located on the both sides of robot | |
| Ambient Temperature | 0°C-40°C | |
| Status Indicator | Status Light |
