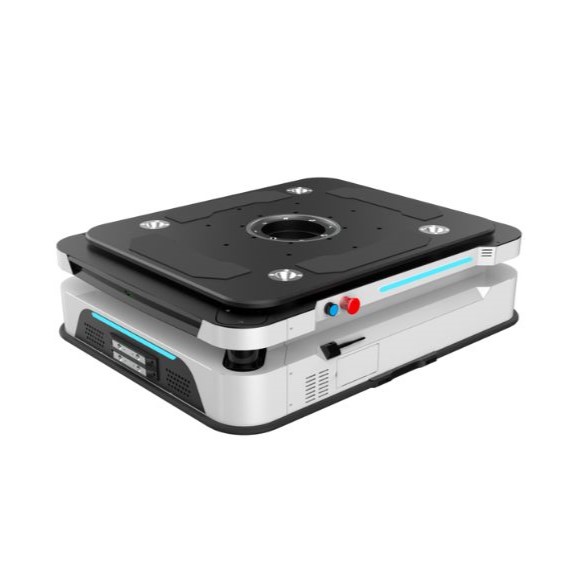

L1000 is one of the most powerful AMRs with payload of 1000 kg. It is designed with the goal to handle the heaviest workload in the facilities and optimise intralogistics efficiencies and throughputs in warehouses by automating the movement of goods, racks and pallets.
The YOUIFLEET management system allows a fleet collaboration of up to 1000 AMRs under the same system, enabling a real ‘light-out’ operation across workshops.
Features
・ 1000KG Payload
・ Flexible Deployment and Cluster Dispatching
・ Lift and Rotate Top Module
・ Intelligent Traffic Arrangement
・ 8 Hours Runtime
・ LiDAR, QR Code Carrier Docking Camera
| Category | Item | Parameter |
|---|---|---|
| Main Body | Size | 1061*838*300mm |
| Weight | 310KG | |
| Turning Diameter | 1262mm | |
| Navigation Mode | Lidar SLAM | |
| Mobility Performance | Max. Payload | 1000Kg |
| Max. Speed | 1.5 m/s No-loaded; 1.0 m/s Full-loaded | |
| Rated Speed | 1.2 m/s No-loaded; 0.8 m/s Full-loaded | |
| Positioning Accuracy (With QR code or reflector co-operating) | Positioning accuracy: ±5 mm; Angle accuracy: ±1° | |
| Path Planning | Visual tracking/autonomous planning | |
| Lift Method | 360° rotation & lifting; Max. Elevation: 60mm | |
| Power & Battery | Drive Model | Two-wheel differential drive |
| Battery Type | Lithium iron phosphate, 48V, 48Ah | |
| Battery Life | Cycle life ≥ 2,000 cycles | |
| Safety Design | Running Time | ≥8H |
| Collision Detection | 360° around robot | |
| Emergency Stop Button | 2 x buttons located on the both sides of robot | |
| Ambient Temperature | 0°C-40°C, without condensation | |
| Status Indicator | Status Light |
